When engineering an off-grid electrical setup for a truck build, camper trailer, or marine house bank, choosing the right battery chemistry is the single most important decision you'll make. Your battery bank dictates how long your 12V fridge runs in triple-digit heat, how quickly your solar panels can store energy, and how much dead weight you're hauling down the trail.

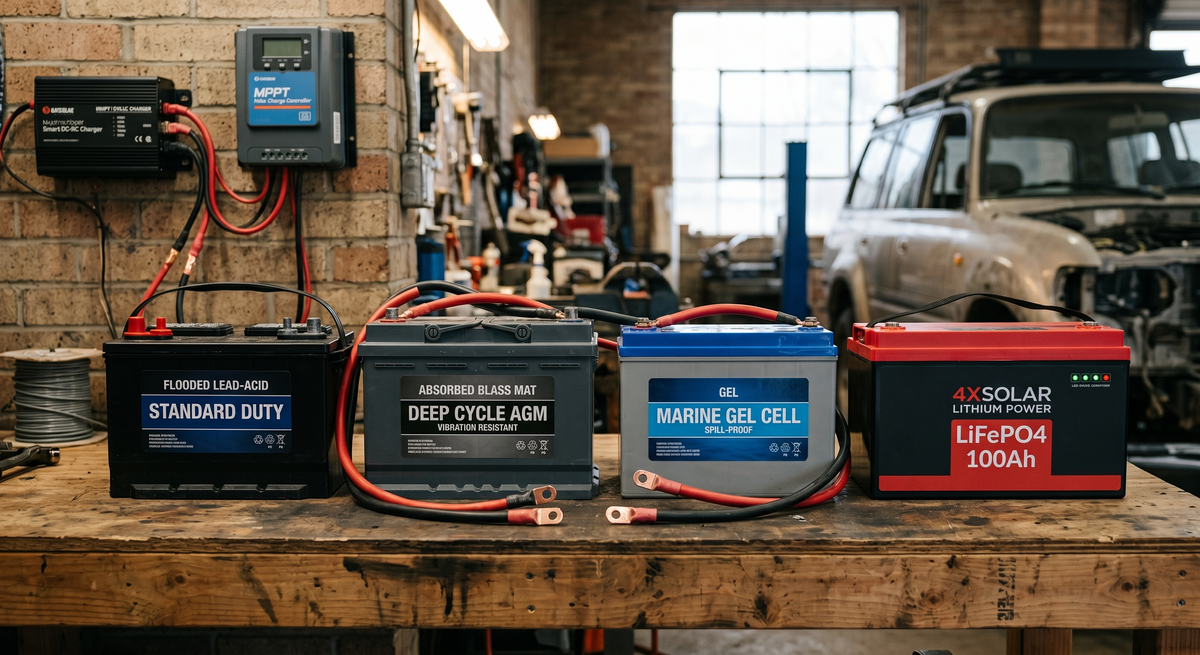

Different chemistries handle thermal stress, vibration, and charge profiles in vastly different ways. Here is a breakdown of the four main battery types you'll encounter on trail rigs and boats, along with their field realities.
1. Flooded Lead-Acid (FLA): Legacy Starter Technology
Flooded lead-acid batteries use liquid sulfuric acid surrounding lead plates. While economical for starting an engine, they are poorly suited for auxiliary deep-cycle loads.
- Venting Requirements: Off-gasses flammable hydrogen during high-voltage charging. Must be mounted upright in a fully vented space.
- Maintenance: Requires periodic topping off with distilled water as water evaporates during charge cycles.
- Usable DoD: Discharging below 50% Depth of Discharge (DoD) permanently damages the internal lead plates, causing capacity loss.
2. Absorbed Glass Mat (AGM): Heavy-Duty Under-Hood Workhorse
AGM batteries hold electrolyte in saturated fiberglass separators. Because they are fully sealed and spill-proof, they represent a significant upgrade over flooded batteries for off-road use.
- Vibration Resistance: Excellent mechanical stability makes AGM ideal for under-hood dual-battery systems subjected to severe washboard trails.
- Charge Acceptance: Accepts high amperage faster than flooded cells, but suffers capacity loss if stored at a partial state of charge.
- Weight Penalty: Extremely heavy per usable amp-hour compared to modern lithium alternatives.
3. Gel Cell Lead-Acid: Marine & Low-Draw Storage
Gel batteries utilize a silica additive that turns the electrolyte into a thick paste. They excel in steady, long-term discharge environments like sailboat house banks, but require strict voltage regulation.
- Voltage Sensitivity: Overcharging a Gel battery burns pockets into the gel paste, creating permanent dead zones on the plates.
- Slow Recovery: Requires a slow, controlled charge profile. Unregulated vehicle alternators will destroy a Gel battery quickly.
4. Lithium Iron Phosphate (LiFePO4): Modern Off-Grid Gold Standard
LiFePO4 chemistry has redefined vehicle and camper power storage. By combining high energy density with an internal Battery Management System (BMS), lithium delivers maximum performance inside climate-controlled cabin spaces.
- 100% Usable Capacity: Provides flat voltage delivery across 80% to 100% of its capacity without voltage sag under heavy inverter loads.
- Massive Weight Reduction: Weighs roughly 60% less than an AGM battery with equivalent usable amp-hours.
- Cold Charge Guard: Requires a low-temperature BMS cutoff to prevent permanent lithium plating if charged below 32°F (0°C).
Technical Chemistry Comparison
| Parameter | Flooded Lead-Acid | AGM | Gel Cell | LiFePO4 (Lithium) |
|---|---|---|---|---|
| Usable Depth of Discharge | 50% Max | 50% Max | 50% Max | 80% – 100% |
| Expected Cycle Life | 300 – 500 | 500 – 800 | 500 – 1,000 | 3,000 – 5,000+ |
| Weight per 100Ah Usable | ~120 lbs | ~130 lbs | ~140 lbs | ~25 lbs |
| Best Mounting Location | Vented Engine Bay | Engine Bay / Frame | Vented Cabin | Living Space / Cabin |
