If you own a Jeep Gladiator (JT) or Wrangler (JL), you may have experienced mysterious electrical glitches, sudden ESS (Auto Stop-Start) warnings, or a dead starter battery after leaving your rig parked at camp for two days.
The culprit is often the factory dual-battery configuration. Jeep engineered the JT Gladiator with two separate 12V batteries connected in parallel through a complex relay network. Understanding how this system works—and how solar charging preserves it—is critical for off-grid reliability.
The Factory Jeep Gladiator Dual-Battery Setup
Under the hood of your Gladiator sits the main cranking battery (Group 94R/H7 AGM). However, hidden directly beneath the main fuse box in the inner passenger fender well lies a second, smaller AUX14 auxiliary battery.
- Engine Off/Stop-Start: When ESS engages at a stoplight or when the engine is shut off, the Power Control Relay (PCR) isolates the auxiliary battery to power interior accessories, dash displays, and computer modules without draining the main starter battery.
- The Parasitic Drain Problem: Because the auxiliary battery is small, 12V fridges, radios, and trail lights quickly drain it. Once the AUX14 drops below threshold voltage, it pulls down the primary battery through parasitic draw, leaving you stranded.
Why Lensun Hood Solar is the Perfect Gladiator Solution

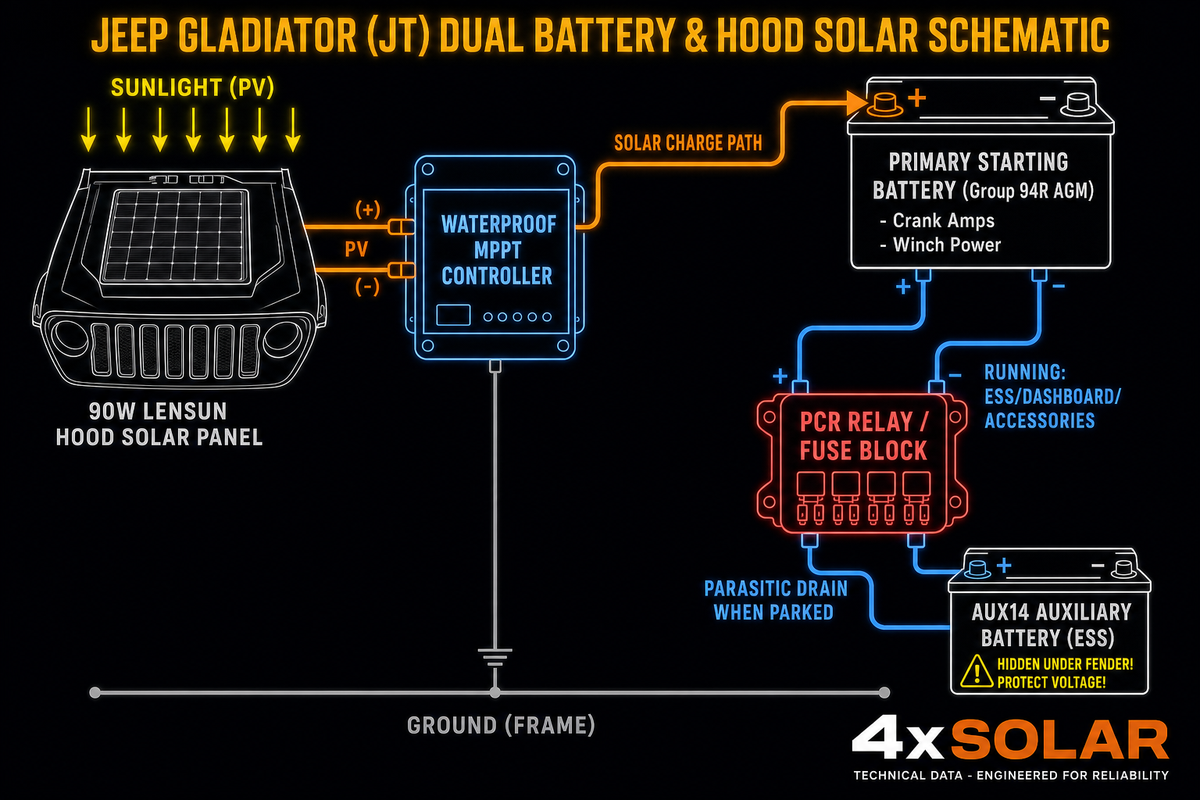

Mounting a 90W Lensun flexible hood solar panel turns your hood into a continuous charge surface. Rated at 23.5% cell efficiency, the panel feeds current into an MPPT controller connected directly to the primary battery terminals. When the primary battery tops off, charge current flows through the factory bridge to keep the auxiliary battery maintained.
Technical Specifications: Lensun 90W Gladiator Hood Panel
| Parameter | Engineering Value |
|---|---|
| Peak Power Output | 90W (5.29A Maximum Current) |
| Solar Cell Type | Grade A PERC Monocrystalline (23.5% Efficiency) |
| Surface Layer | Premium ETFE Film (Non-reflective anti-glare finish) |
| Thickness & Weight | 3mm ultra-thin / 6.6 lbs (3kg) |
| Junction Box Rating | IP68 Waterproof with 5ft pre-wired cabling |
Installation Walkthrough Video
For a step-by-step visual walkthrough of mounting a Lensun hood solar panel on a Jeep Gladiator Mojave, watch this detailed installation video by 312 Overland:
Step-by-Step Installation Process
Installation takes less than 90 minutes using basic hand tools and requires zero drilling into your Jeep's hood:
- Surface Preparation: Wash the hood thoroughly and wipe down the center inset section with Isopropyl Alcohol (IPA) to strip wax and road grease.
- Vinyl Decal Application: Apply the custom-fitted 3M matte black vinyl decal onto the hood center. This acts as a thermal barrier and protects your factory paint from adhesive transfer.
- Panel Alignment & Adhesion: Peel the backing from the panel's marine-grade 3M adhesive, align the panel contours around the windshield washer nozzles, and press firmly from center to edge to purge air bubbles.
- Wire Routing: Route the 10 AWG IP68 cable along the hood hinge gap into the engine bay, securing it with heat-resistant zip ties away from exhaust heat.
- MPPT Controller Connection: Mount the waterproof 10A MPPT controller near the firewall and connect the fused lead ring terminals directly to the positive terminal stud and chassis ground.
