It is 2:00 AM at a dispersed campsite. Your 12V fridge has been running for sixteen hours, the LED loadout is still lit, and your phone is charging off the house bank. By morning, the auxiliary battery is hovering just above its low-voltage disconnect — and the only way to refill it is to idle the engine, burning fuel and making noise in the one place you came to find quiet.
For overlanders, van-lifers, and backcountry travelers, keeping an auxiliary battery topped off without idling is a constant operational problem. Every amp-hour drawn overnight has to be replenished somehow. Roof-mounted solar helps, but on a forest trail the roof rack is loaded with recovery boards, a tent, and gear — and a single tree shadow can collapse the whole array's output.

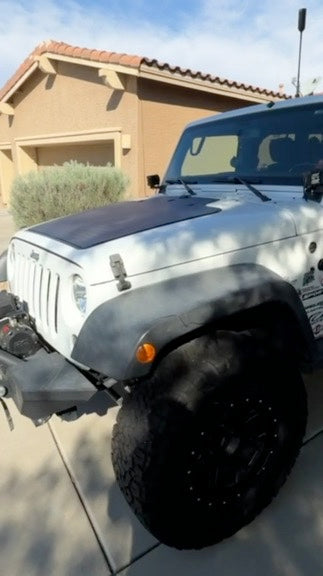

That is where a vehicle-specific hood solar panel changes the math. Mounted flat on the hood where it gets direct sun all day, a hood panel quietly feeds an MPPT charge controller that tops off your house bank while you are parked, driving, or sleeping. No fuel, no noise, no roof-rack competition.
Here is the science behind why a hood-mounted solar panel tops off an auxiliary battery so effectively under direct sunlight — and why the right cells, controller, and wire sizing are what separate a real top-off from a trickle that never catches up.
How Much Solar Energy Actually Hits the Hood
Solar panels are rated under Standard Test Conditions (STC): 1000 W/m² of irradiance with a 25°C cell temperature — the benchmark the entire photovoltaic industry uses to compare modules ([NREL, Photovoltaic Module Energy Rating Procedure](https://docs.nrel.gov/docs/legosti/old/23942.pdf)). In plain terms, a square meter of surface in full, direct sun receives roughly 1000 watts of raw solar energy. A hood panel's job is to convert as much of that as possible into charge current for your battery.
That conversion is the photovoltaic effect: sunlight knocks electrons loose in the cell's semiconductor, and those flowing electrons become the current that charges your battery. The more irradiance, the more current — which is why a flat, sun-facing hood panel harvests steadily from sunrise to sunset, long after a tilted roof panel has lost its ideal angle.
The Partial-Shading Problem That Kills Roof Arrays
Here is the catch most overlanders learn the hard way. Traditional solar panels are wired in series strings, and a series string only delivers as much current as its weakest cell. When a roof rack, a tree branch, or even a recovery board casts a shadow across one corner of a roof panel, the shaded cells become bottlenecks and the whole string's output collapses.
This is not a small effect. Partial shading causes power loss from two sources: a non-recoverable loss from reduced irradiance on the shaded cells, and a recoverable loss from panel mismatch — and the recoverable portion is exactly what good bypass diodes and fast MPPT tracking can win back ([NREL, Performance Modeling and Testing of Distributed Electronics in PV Systems](https://docs.nrel.gov/docs/fy15osti/64167.pdf)).
Hood panels solve this at the cell level. Vehicle-specific hood solar panels use SunPower Maxeon Gen III back-contact monocrystalline cells (24.4% efficiency) with integrated Schottky bypass diodes. When a shadow falls on one sector — a wiper arm, a mirror, a roof-rack shadow creeping forward — the bypass diode routes current around the shaded cells so the unshaded sectors keep delivering full current to the controller. The NREL research confirms the mechanism: when bypass diodes activate on shaded panels, the rest of the string keeps operating near its full current instead of dropping to the shaded cell's low output.
Why MPPT Extracts More From Every Watt of Sunlight
A solar panel has one specific voltage-and-current point — the Maximum Power Point (MPP) — where it delivers its peak watts. That point shifts constantly as irradiance and temperature change through the day. A Maximum Power Point Tracking (MPPT) charge controller continuously adjusts its input impedance to hold the panel right at that peak, while a legacy PWM controller simply clamps the panel to battery voltage and throws away the excess.
The difference is measurable. Academic testing of solar home systems found that MPPT controllers deliver roughly 4–9% more harvested energy than PWM controllers under matched conditions, with the gap widening under partial shading and low-irradiance mornings, where PWM's fixed-voltage approach wastes the most ([TU Berlin, Optimal Sizing of Solar Home Systems: Charge Controller Technology and Its Influence on System Design](https://www.static.tu.berlin/fileadmin/www/10002168/Publications_-_OpenAccess/Schmid_Behrendt_Optimal_2021.pdf)). Pair that with the NREL finding that finer MPPT granularity recovers more of the mismatch loss from shade, and the case for a quality MPPT controller on a hood panel is clear — especially on forest trails where shadows move across the hood all day.
Battery Chemistry: Why Depth of Discharge Decides Cycle Life
The panel and controller only matter if your battery can actually absorb and hold the charge. This is where chemistry makes or breaks an off-grid build. Lithium iron phosphate (LiFePO4) has become the overland standard for a reason rooted in hard data: depth of discharge directly governs how many cycles the battery will live.
Peer-reviewed cycle-life testing of LiFePO4 cells found that a lithium iron phosphate battery performed roughly 3,200 cycles at 80% depth of discharge, versus nearly 35,000 shallow cycles at only 20% depth of discharge ([Applied Energy, Lithium iron phosphate based battery – Assessment of the aging parameters and development of cycle life model](https://www.sciencedirect.com/science/article/pii/S0306261913007393)). The takeaway for a rig: shallower daily cycling means a dramatically longer-lived bank. That is why most builders target 80% DoD as the practical floor — enough usable capacity for a night of fridge and lighting loads, while preserving thousands of cycles of service life.
Unlike lead-acid, LiFePO4 tolerates deep discharge without permanent sulfation, but it demands tight charging discipline: a strict absorption voltage between 14.2V and 14.6V, and a charge profile matched to the cell's requirements. An MPPT controller with a lithium-specific profile holds those parameters automatically, so the panel's harvested energy actually lands in the bank instead of degrading it.
Putting It Together: A Real Top-Off, Not a Trickle
So how much top-off can you realistically expect under direct sunlight? It comes down to the product of four factors: the irradiance landing on the hood (up to ~1000 W/m² in full sun), the panel's cell efficiency (24.4% for back-contact monocrystalline), the controller's tracking efficiency (a quality MPPT unit holds the panel at its power peak), and the wire and chemistry losses in between. Keep the wire short, the controller on a lithium profile, and the daily depth of discharge shallow, and a hood panel quietly refills the amp-hours your fridge and lights drew overnight — every sunny day, with the engine off.
Technical Specifications Quick Reference
| Parameter | Engineering Value |
|---|---|
| Standard Test Condition Irradiance | 1000 W/m² (full direct sun) |
| Cell Efficiency | 24.4% Back-Contact Monocrystalline |
| Shading Mitigation | Integrated Schottky bypass diodes |
| Charge Controller | MPPT (lithium profile, 14.2–14.6V absorption) |
| Target Voltage Drop | < 2% on panel-to-controller run (10 AWG) |
| Recommended DoD (LiFePO4) | 80% (thousands of cycles) |
For custom vehicle fitments and direct-fit hood solar configurations engineered for off-road trails, browse the Lensun hood panel collection at 4xSolar — vehicle-specific fits for Jeep, Tacoma, Silverado, and more, each with the bypass-diode cell architecture described above.
Frequently Asked Questions
Can a hood solar panel really top off an auxiliary battery, or is it just a trickle?
A properly sized hood panel paired with an MPPT controller can meaningfully top off an auxiliary battery under direct sunlight. In full sun the hood receives up to ~1000 W/m² of irradiance (the STC standard), and a 24.4%-efficient back-contact panel converts a useful share of that into charge current. It will not match a 400W roof array, but because it sits flat in full sun all day and is not blocked by roof-rack gear, it reliably replaces the amp-hours a fridge, lights, and comms draw overnight — turning a slow drain into a daily refill.
Why does partial shading hurt a roof panel more than a hood panel?
Solar cells wired in series only deliver as much current as their weakest cell, so a shadow on one corner of a roof panel collapses the whole string. Hood panels use back-contact cells with integrated Schottky bypass diodes that route current around shaded sectors, so the unshaded cells keep delivering. NREL research confirms bypass diodes and finer MPPT tracking recover the mismatch loss that shading otherwise wastes.
MPPT or PWM charge controller — does it actually matter for a small hood panel?
Yes, especially on a small panel. MPPT holds the panel at its maximum power point as irradiance and temperature shift, while PWM clamps the panel to battery voltage and wastes the surplus. Academic testing shows MPPT harvests roughly 4–9% more energy than PWM under matched conditions, with the gap widening in low-light mornings and partial shade — exactly the conditions a hood panel sees on forest trails.
How deep can I discharge a LiFePO4 auxiliary battery each night?
Most builders target 80% depth of discharge as the practical floor. Peer-reviewed cycle-life testing of LiFePO4 cells showed roughly 3,200 cycles at 80% DoD versus nearly 35,000 shallow cycles at 20% DoD — shallower daily cycling means a dramatically longer-lived bank. Keep the charge controller on a lithium profile (14.2–14.6V absorption) so the panel's energy actually lands in the battery instead of degrading it.
What gauge wire should I use from the hood panel to the controller?
Use 10 AWG marine-grade tinned copper wire and keep the run as short as possible. This holds voltage drop under 2%, so the energy the panel harvests actually reaches the controller and battery rather than being lost as heat in the wire. Longer runs or thinner wire are the most common reason a hood panel "underperforms" — the panel is fine, the wiring is stealing the power.
Sources & References
- NREL — Photovoltaic Module Energy Rating Procedure. Defines Standard Test Conditions: 1000 W/m² irradiance at 25°C cell temperature. https://docs.nrel.gov/docs/legosti/old/23942.pdf
- NREL (C. Deline, 2015) — Performance Modeling and Testing of Distributed Electronics in PV Systems. Partial shading causes non-recoverable irradiance loss plus recoverable mismatch; bypass diodes and MPPT granularity recover the mismatch portion. https://docs.nrel.gov/docs/fy15osti/64167.pdf
- Applied Energy (Omar et al., 2014) — Lithium iron phosphate based battery – Assessment of the aging parameters and development of cycle life model. LiFePO4 cycle life vs depth of discharge: ~3,200 cycles at 80% DoD vs ~34,957 cycles at 20% DoD. https://www.sciencedirect.com/science/article/pii/S0306261913007393
- TU Berlin (Schmid & Behrendt, 2021) — Optimal Sizing of Solar Home Systems: Charge Controller Technology and Its Influence on System Design. MPPT controllers track the maximum power point; PWM operates at lower efficiency; MPPT yields ~4–8.6% more energy than PWM under matched conditions. https://www.static.tu.berlin/fileadmin/www/10002168/Publications_-_OpenAccess/Schmid_Behrendt_Optimal_2021.pdf
